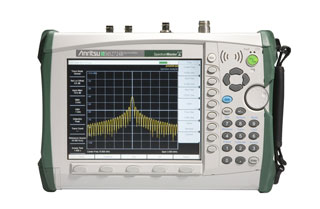

Anritsu MS2724B
Base Frequency: 9 KHz Max Frequency: 20 GHz
Spectrum Analyzer
The Anritsu MS2724B Spectrum Master handheld spectrum analyzer is designed to conduct highly accurate analysis on the new wave of wireless LAN and cellular signals, including 802.11a, 3G, ultra-wideband, and wireless medical patient monitoring systems. The next generation of Anritsu’s best selling Spectrum Master, the MS2724B is a small and easy to use portable spectrum analyzer with unprecedented measurement capability for applications up to 20 GHz. Weighing in at less than 8 pounds, it is equally at home on the engineering bench and in the field. It is ideally suited for measuring up to the fifth harmonic of 3G cellular phone base stations.
IN STOCK
Description
Features
Handheld, battery-operated design
Large daylight viewable transflective color display
Built in pre-amplifier (standard) up to 4 GHz
Lightweight at only 7.5 pounds (typical)
Best in class Displayed Average Noise Level < -159 dBm typical in a 1 Hz resolution bandwidth at 1 GHz
Quick Zoom-in, Zoom-out display in 1-2-5 sequence
RBWs: 1 Hz to 3 MHz in 1-3 sequence
VBWs: 1 Hz to 3 MHz in 1-3 sequence
Automatic or manual input attenuator control
Dedicated smart measurements
Trace Averaging
Normal, Max hold, Min hold, user settable averaging (more than 65,000 traces can be averaged!)
Reference Level Offset
Three traces
Options at additional cost:
009 = IQ Demodulation Hardware
019 = High Accuracy Power Meter (Power Sensor not included)
025 = Interference Analysis
027 = Channel Scanner
031 = GPS (includes GPS antenna)
033 = cdmaOne and CDMA2000 1xRTT OTA (requires Opt. 009, Opt. 031)
034 = EVDO Over The Air (OTA) Measurements (requires Opt. 009, Opt. 031)
035 = W-CDMA/HSDPA OTA (requires Opt. 009, Opt. 031)
037 = Mobile WiMAX Over The Air (OTA) Measurements (requires Opt. 009)
038 = TD-SCDMA Over the Air (OTA) Measurements
040 = GSM/GPRS/EDGE RF Measurements (requires Opt. 009)
041 = GSM/GPRS/EDGE Demodulation (requires Opt. 009)
042 = CDMA RF Measurements (requires Opt. 009)
043 = cdmaOne and CDMA2000 1xRTT Demodulator (requires Opt. 009)
044 = W-CDMA/HSDPA RF Measurements (requires Opt. 009)
045 = W-CDMA Demodulation (requires Opt. 009)
046 = Fixed WiMAX RF Measurements (requires Opt. 009)
047 = Fixed WiMAX Demodulation (requires Opt. 009)
060 = TD-SCDMA RF Measurements (requires Opt. 009)
061 = TD-SCDMA Demodulator (requires Opt. 009)
062 = EVDO RF Measurements (requires Opt. 009)
063 = EVDO Demodulator (requires Opt. 009)
065 = W-CDMA/HSDPA Demodulation (requires Opt. 009)
066 = Mobile WiMAX RF Measurements (requires Opt. 009)
067 = Mobile WiMAX Demodulator (requires Opt. 009)
089 = IF Output
090 = Gated Sweep
