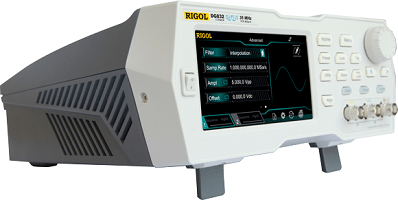

DG800 SERIES RIGOL WAVEFORM GENERATORS
Unique SiFi II (Signal Fidelity II) technology: generate the arbitrary
waveforms point by point; recover the signal without distortion; sample
rate accurate and adjustable; jitter of all the output waveforms
(including Sine, Pulse, etc.) as low as 200 ps
2 Mpts memory depth (standard); 8 Mpts memory depth (optional) per
channel for arbitrary waveforms
Optional dual-channel with the same performance, equivalent to two
independent signal sources
High frequency stability: ±1 ppm; low phase noise: -105 dBc/Hz
Built-in high-order harmonic generator (at most 8-order harmonics)
IN STOCK
Description
Built-in 7 digits/s, 240 MHz bandwidth full featured frequency counter
Up to 160 built-in arbitrary waveforms, covering the common signals
in engineering application, medical electronics, auto electronics, math
processing, and other various fields
Sample rate up to 125 MSa/s, vertical resolution 16 bits
Arbitrary waveform sequence editing function available; arbitrary
waveforms also can be generated through the PC software
Various analog and digital modulation functions: AM, FM, PM, ASK, FSK,
PSK, and PWM.
Standard waveform combine function, capable of outputting specified
waveforms combined with the basic waveforms
Standard channel tracking function, when enabled, all the parameters of
both channels are updated based on users’ configurations
USB Host&Device interface (standard); USB-GPIB function supported
4.3” TFT color touch screen
RS232, PRBS, and Dual-tone outputs supported
