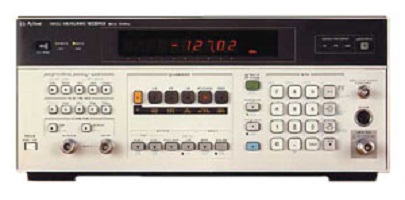

Agilent 8902A
Agilent 8902A
The Keysight 8902A has six precise measurement functions in one fully automatic, HP-IB programmable instrument. It makes signal generator attenuator calibration easier than ever before. Measures RF power from +30 dBm to -20 dBm over 0.1MHz to 2.6GHz range, and tuned RF level from 0 to -127 dBm dynamic range. Measures modulation with 1% accuracy and RF frequency with 1Hz resolution. Also has audio frequency, level, and distortion capabilities.
IN STOCK
Description
Agilent 8902A
The Agilent Technologies 8902A measuring receiver
delivers the accuracy and resolution of a high performance power meter at frequencies from 150 kHz
to 1.3 GHz (50 MHz to 26.5 GHz with the Agilent
11793A microwave converter) and levels from
+30 dBm to –127 dBm. It accurately measures AM,
FM, and fM, including residuals and incidentals,
with a single keystroke. The 8902A measuring
receiver, with the 11793A, counts RF signals to
26.5 GHz with 10 Hz resolution and excellent longterm frequency stability. The 8902A measuring
receiver with Option 050 offers increased power
measurement accuracy. This option specifies Tuned
RF Level on the 8902A measuring receiver to an
accuracy of ±(0.015 dB + 0.005 dB/10 dB step).
