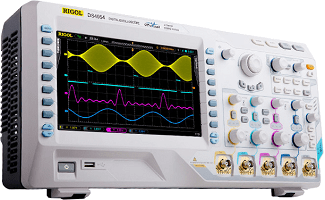

4000 SERIES RIGOL DIGITAL OSCILLOSCOPES
Bandwidth: 500 MHz, 350 MHz, 200 MHz, 100 MHz
Real-time Sample Rate: analog channel up to 4 GSa/s, digital
channel up to 1 GSa/s (MSO)
Standard Memory Depth: analog channel up to 140 Mpts, digital
channel up to 28 Mpts (MSO)
2 or 4 analog channels, 16 digital channels (MSO)
Waveform capture rate up to 110,000 waveforms per second
Hardware real-time waveform record, playback and analysis
functions (standard up to 200,000 frames)
Lower noise floor, the minimum vertical sensitivity is 1mV/div
Innovative “UltraVision” technology
IN STOCK
Description
A variety of trigger and bus decoding functions (both analog and
digital channels)
Supports bandwidth update for 200 MHz and 350 MHz bandwidth
models
Complete Connectivity: USB HOST&DEVICE, LAN (LXI-C), VGA,
AUX, USB-GPIB (optional)
9 inch WVGA (800×480), 256 level intensity grading display
MSO/DS4000 series is the new mainstream digital scope to meet
the customer’s applications with its innovative technology. MSO4000
has 2+16 or 4+16 channels, target for the embedded design and
test market with its industry leading specifications, powerful trigger
functions and broad analysis capabilities.
