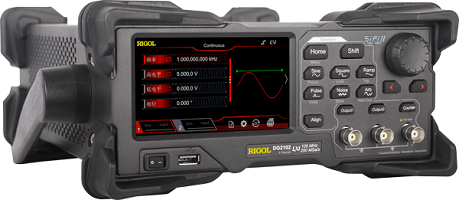

The Best DG2000 SERIES RIGOL WAVEFORM GENERATORS
DG2000 SERIES RIGOL WAVEFORM GENERATORS
Unique SiFi II (Signal Fidelity II) technology: generate the arbitrary
waveforms point by point; recover the signal without distortion; sample
rate accurate and adjustable; jitter of all the output waveforms (including
Sine, Pulse, etc.) as low as 200 ps
16 Mpts memory depth per channel for arbitrary waveforms
Standard dual-channel with the same performance, equivalent to two
independent signal sources
High frequency stability: ±1 ppm; low phase noise: -105 dBc/Hz
Built-in high-order harmonic generator (at most 8-order harmonics)
Built-in 7 digits/s, 240 MHz bandwidth full featured frequency counter
Up to 160 built-in arbitrary waveforms, covering the common signals
in engineering application, medical electronics, auto electronics, math
processing, and other various fi elds
IN STOCK
Description
DG2000 SERIES RIGOL WAVEFORM GENERATORS
Sample rate up to 250 MSa/s, vertical resolution 16 bits
Arbitrary waveform sequence editing function available; arbitrary
waveforms also can be generated through the PC software
Various analog and digital modulation functions: AM, FM, PM, ASK, FSK,
PSK, and PWM.
Standard waveform combine function, capable of outputting specifi ed
waveforms combined with the basic waveforms
Standard channel tracking function, when enabled, all the parameters of
both channels are updated based on users’ confi gurations
Standard interface: USB Host&Device and LAN (LXI Core 2011 Device);
USB-GPIB function supported
4.3” TFT color touch screen
RS232, PRBS, and Dual-tone outputs supported
