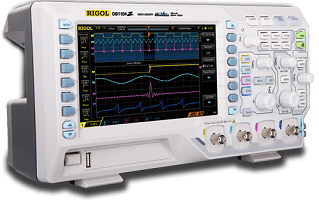

1000Z SERIES RIGOL DIGITAL OSCILLOSCOPES
Analog channel bandwidth: 100 MHz, 70 MHz, 50 MHz
4 analog channels, 16 digital channels (only available for DS1000Z Plus
that has been upgraded with the MSO upgrade option)
Real-time sample rate up to 1 GSa/s
Memory depth up to 24 Mpts
Up to 30,000 wfms/s waveform capture rate
Up to 60,000 frames hardware real-time waveform recording and
playback functions
Innovative “UltraVision” technology
Various trigger and bus decoding functions
Low noise floor, vertical scale range: 1 mV/div to 10 V/div
Built-in dual-channel 25 MHz function/arbitrary waveform generator
IN STOCK
Description
Various interfaces: USB Host&Device, LAN (LXI), AUX
Compact size, light weight, easy to use
7 inch WVGA (800×480) TFT LCD, intensity graded color display
DS1000Z series is a high-performance and economic digital oscilloscope
designed for the designing, debugging and educational requirements of the
mainstream digital oscilloscope market. Wherein, the mixed signal digital
oscilloscope aimed at the embedded design and test fields is equipped with
16 digital channels and allows users to measure analog and digital signals at
the same time.
