The Best Voltech PA1000

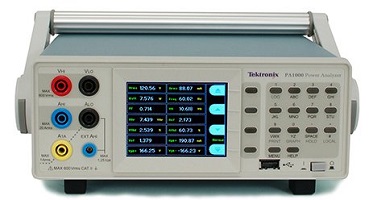

Voltech PA1000
The Tektronix PA1000 is a single-phase, single-channel power analysis
solution that is optimized for fast, efficient, and accurate power
consumption testing to international standards.
IN STOCK
Description
Voltech PA1000
The Tektronix PA1000 is a single-phase, single-channel power analysis
solution that is optimized for fast, efficient, and accurate power
consumption testing to international standards. It’s compact size, DMM-like
user-interface, graphical display, and powerful software enable users to
quickly visualize, analyze, and document the power consumption efficiency
of next-generation devices, including standby power measurements and
harmonic analysis.
Key specifications
1 MHz bandwidth
5 mW standby power measurements
Harmonic analysis to the 50th order (standard)
+/- 0.04% basic accuracy
20 µA to 20 Arms direct current input
1 V to 600 Vrms (Cat II) voltage input
USB, LAN, and GPIB interfaces (standard)
Three-year warranty
Essential power measurement tool for the R&D bench
Harmonic analysis to IEC/EN 61000-3-2 / 4-7 (pre-compliance testing
to the 50th order)
Standby power analysis to IEC 62301 / EN 50564 (full compliance
testing as low as 5mW)
Supports additional testing to CE, EnergyStar, CEC, SPEC Power® 1
,
CQC-3146, NOM-32-ENER-2013, and more
Transient analysis with 1M sample/sec continuous sampling
Measure voltage, current, power, VA, WHr, THD, PF, CF, and more
Convenient front-panel banana jack inputs, color graphical display, and
PWRVIEW software to simplify usage and boost productivity
Optional breakout test box simplifies AC line connections between your
device under test and the PA1000
Applications
Power, energy, standby power, and harmonics measurements for:
Power supply and UPS
LED drivers / lighting
Wireless charging
Consumer electronics
Home appliances
Computers and IT equipment
Inverters and converters
Battery chargers
