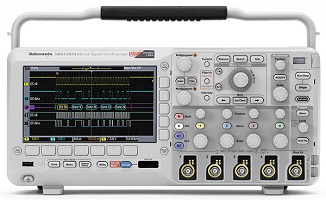

Tektronix MSO2014 100MHz, 4 Channel Mixed Signal Oscilloscope
Key Performance Specifications
- 100 MHz and 200 MHz bandwidth models
- 2 or 4 analog channels
- 16 digital channels (MSO2000 Series)
- Sample rates up to 1 GS/s on all channels
- 1 Mega sample record length on all channels
- 5,000 wfm/s maximum waveform capture rate
- Suite of advanced triggers
- Serial Bus Trigger and Decode
- I2C, SPI, CAN, LIN, and RS-232/422/485/UART serial triggering, decode, and analysis options
Ease of Use Features
Wave Inspector® Navigation and Search provides unprecedented efficiency in waveform analysis
FilterVu™ variable low-pass filter allows for removal of unwanted signal noise while still capturing high-frequency events
7 in (180 mm) bright, widescreen, TFT-LCD color display
USB 2.0 on front panel for quick and easy data storage
USB 2.0 device port on rear panel for direct PC control of oscilloscope using USBTMC or direct printing to any PictBridge® compatible printer
Plug ‘n’ Play PC connectivity and analysis software solutions
TekVPI® Probe Interface supports active, differential, and current probes for automatic scaling and units
Small footprint and light weight – only 5.3 in (134 mm) deep and 7 lb 14 oz (3.6 kg)
Mixed Signal Design and Analysis (MSO2000 Series)
Ability to time correlate up to 4 analog and 16 digital channels
Parallel bus trigger and analysis
Multichannel setup and hold triggering
Next-generation digital waveform display
Applications
- Embedded design and debug
- Mixed signal design and debug
- Power measurements
- Automotive electronics
- Education and Training
- Video design and debug
IN STOCK
Description
Tektronix MSO2014
The Power to Solve Problems Quickly –
The MSO2000 and DPO2000 Series digital phosphor oscilloscopes (DPOs) deliver the performance and tools you
need to visualize your signals and find answers quickly. The DPO2000 Series are the first oscilloscopes to provide 1 M points of usable record length on all channels, serial trigger and decode analysis options, a variable low-pass filter that also allows you to see signal details to the oscilloscope’s full bandwidth and all in a compact form factor.
The MSO2000 Series adds 16 integrated digital channels, enabling you to visualize and time correlate analog and digital signals on a single instrument. This integration extends triggering functionality across all 20 channels – which is ideal or debugging mixed analog and digital designs.
Options
Opt. A0 North America power.
Opt. A1–Universal EURO power.
Opt. A2–United Kingdom power.
Opt. A3–Australia power.
Opt. A5–Switzerland power.
Opt. A6–Japan power.
Opt. A10–China power.
Opt. A11–India power.
Opt. A99–No power cord or AC adapter.
