The Best Rohde & Schwarz SMIQ03B-B19
Rohde & Schwarz SMIQ03B-B19
Features:
Frequency Range : 300kHz – 3.3GHz
RF Output Level from -144 to +13dBm
Frequency Resolution : 0.1Hz
AM,FM, Pulse, Phase and Digital Modulation
IEEE Interface
Options:
B19 – RF and LF Rear Panel Connectors
IN STOCK
Description

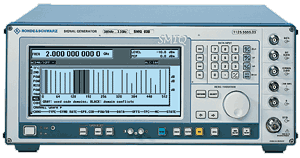

Rohde & Schwarz SMIQ03B-B19
Vector Signal Generator
Vector Signal Generator, 300kHz-3.3GHz
The SMIQ03B is a vector signal generator with a frequency range of 300 kHz to 3.3 GHz. The high-grade I/Q modulator fitted as standard ensures minimum error vector magnitude and high intermodulation suppression. Using modern digital signal processor (DSP) technology, the versatile concept allows the generation of high-precision digital modulation signals at high bit rates without any limitations on modulation modes or standards. In addition to digital modulation, the SMIQ03B provides the full range of analog modulation modes as well as simultaneous modulation capability.
