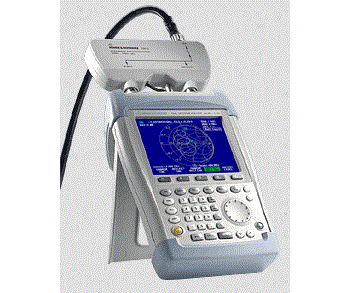

Rohde & Schwarz FSH3.23

Frequency range 100 kHz to 3 GHz
Internal preamplifier with frequency range from 100 kHz to 3 GHz
Displayed average noise level typ. -135 dBm (RBW 100 Hz)
typ. 0.5 dB level accuracy up to 3 GHz
Resolution bandwidths 100 Hz to 1 MHz, 1 and 3 steps
Wide range of detectors : sample, max/min peak , auto peak, RMS
Tracking Generator from 5 MHz to 3 GHz
Increased tracking generator output power (0 dBm, -20 dBm)


Base Frequency: 100 KHz Max Frequency: 3 GHz
3 Ghz Handheld Spectrum Analyzer 3GHz, with tracking generator and preamplifier

Handheld Spectrum Analyzer R&S FSH3 100 kHz to 3 GHz, with tracking generator and preamplifier

The FSH3 model 23 adds new features and furthermore excels the RF characteristic of the standard version model 13. With filter bandwidths down to 100 Hz it ensures high frequency resolution to detect closely spaced signals. The built-in pre-amplifier meets customers
