The Best Litepoint IQView

The LitePoint IQview 802.11a/b/g/n WLAN Test Solution is a popular test instrument for RF testing of 802.11a/b/g WLAN products, including MIMO and optional Bluetooth + EDR. Network interface cards, access points and embedded components are typically tested using this product.

Description

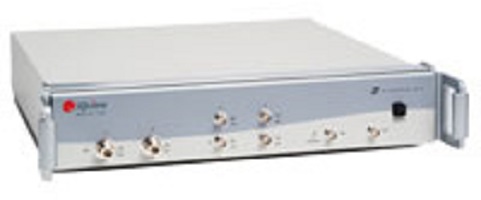

Litepoint IQView

The LitePoint IQview 802.11a/b/g/n WLAN Test Solution is a popular test instrument for RF testing of 802.11a/b/g WLAN products, including MIMO and optional Bluetooth + EDR. Network interface cards, access points and embedded components are typically tested using this product.

Features:
Seamless analysis of DSSS (802.11b/g) and OFDM (802.11a/g) WLAN signals
Advanced VSA and VSG combined with the capabilities of a power meter and spectrum analyzer in a single instrument
Operation in both 2.4 GHz and 5 GHz bands
Baseband I/O facilitates product debugging with LitePoint IQdebug™ Monitor and Control Tool
High-performance VSA
Wide bandwidth (+/-33 MHz)
Capture-once-measure-all operation
High phase linearity, low phase noise, low noise figure
Graphical and numerical display of measurement results
Low noise figure
Pre-defined 802.11a/b/g transmit test signals
Impairments can be introduced in real- time to the transmit test signal
Generation of arbitrary 802.11a/b/g waveforms simplified by optional IQwave WLAN Waveform Generator Software
Simple control interfaces
IQsignal Signal Analysis Software Suite facilitates signal analysis, signal generation, and debugging
LitePoint API (IQapi) supports Visual C/C++ test scripts for use in manufacturing

Benefits:
Test time reduced by from minutes per device to seconds compared to separate instruments for VSA, spectrum analyzer and power meter
Independent simultaneous Rx and Tx measurements
Support for dual-head test functionality
Intuitive user interface means no learning curve
No complicated test set-up or calibration; tests are pre-configured
Easy to re-configure manufacturing stations to test different chipsets
Consistent test results across R&D and manufacturing for quick identification and fix of problems
Consistent quality and performance assured
Direct measurement of transmitter performance using EVM and other signal quality metrics
Efficient and repeatable measurements
Ability to capture, analyze and debug raw signal data on any PC
One-box tester solution eliminates need for multiple test products
No other equipment or software required
Software upgrades ensure compliance with standards changes

System Requirements:
PC: Intel Pentium Processor or compatible
Operating system: Microsoft Windows 2000; Windows XP Professional; Windows XP Home Edition
Memory: 128MB of RAM
Disk space: 200MB of available hard disk space
Monitor: 1024 x 768 resolution
Connectivity: TCP/IP over 10/100BaseT Ethernet
