Keysight-Agilent 8753C
Keysight-Agilent 8753C

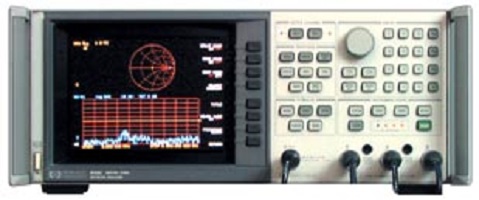

The HP 8753C Network Analyzer provides excellent RF network measurements for lab and production test.
The integrated synthesized source provides 0.100 mW of output power, 1Hz frequency resolution, and linear, log, list, power, and CW sweep types. Three tuned, 300kHz to 6GHz receivers allow versatile independent power measurements or simultaneous ratio measurements over a 100 dB dynamic range. The instrument has a 0.0-5 dB dynamic accuracy over a 40 dB range. It can also be used for swept harmonic measurements and time domain analysis.
With the addition of model 85047A S-Parameter Test Set, the 8753C is a full featured two port 6 GHz network analysis system.
IN STOCK
Description
Keysight-Agilent 8753C
Agilent 8753C vector network analyzers:
Product Specs:
- 300 kHz to 6GHz
- Superb accuracy, with the most comprehensive calibration available
- Optional time domain and swept harmonic measurements
- Mixer testing with frequency offset capability
- Optional step attenuator for extended source output power range
- Pass/fail testing, interpolative error correction, test sequencing, and user-defined test frequencies to enhance productivity
- Two independent display channels for simultaneous measurement of reflection and transmission characteristics
Options
- 002 – Harmonic Measurement Capability
- 006 – 6 GHz Receiver Option
- 010 – Time Domain Capability
- 802 – Add Dual Disk Drive and Cable
- 908 – Rack Mount Kit w/o Handles
- 910 – Extra Manual
- 913 – Rack Mount Kit with Handles
- E02 – S-Parameter-Noise Figure Measurement System
- E20 – Frequency Connector Measurement System
