Keysight-Agilent 8561EC

OPTIONS

001 – Second IF Output (310.7 MHz)provided at rear panel connector J10. Not available with option 327.
005 – Alternate Sweep Output. Not available with option 327.
007 – Fast Time Domain Sweeps as fast as 50 us in 0 Hz span. Not available with option 327.
008 – Signal Identification. Provides signal ID for unpreselected ext. mixers. Not avail. with opt. 327
042 – Soft Carrying Case, Gray
044 – Soft Carrying Case, Yellow
0B0 – Delete manuals
103 – Frequency reference changed to TCXO. Minimum Res BW decreased from 1 Hz to 10 Hz.
104 – Deletes 85620A Mass Memory Module
1BN – MIL-STD-45662A Calibration (no Data)
1BP – MIL-STD-45662A Calibration (with Data)
327 – Deletes front panel IF Input and rear panel Video Output.
908 – Rackmount Flange kit without Handles
909 – Rackmount Flange Kit with Handles
910 – Extra Manual Set
915 – Service Guide
916 – Extra Quick Reference Guide (English)
B70 – BenchLink Spectrum Analyzer
C91 – 856xEC-series Factory Rackmount configuration (see option 908)
E35 – ACPR Test Set
R08 – Signal Identification Retrofit Kit
UK6 – Commercial Calibration Certificate with Test Data
W30 – Extends factory warranty service for 3 years.
W32 – Two additional years calibration service
W34 – 3 year customer return for calibration service
W50 – 5 year customer return for repair service
W52 – 5 year customer return for calibration service
W54 – 5 year customer return for calibration service

Description

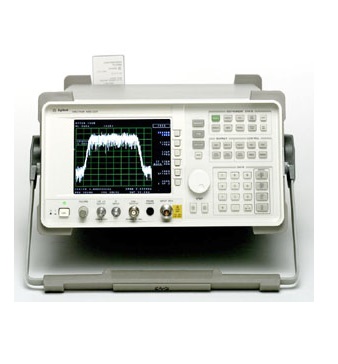

8561EC Portable Spectrum Analyzer, 30 Hz to 6.5 GHz

The Agilent 8561EC portable, color display RF spectrum analyzer offers the measurement capability and performance previously found in larger, more expensive benchtop analyzers. This analyzer combines outstanding phase noise, sensitivity, 1 Hz resolution bandwidths, synthesized tuning and wide dynamic range in a package built to withstand environmental conditions. It offers a complete solution for adjacent-channel power (ACP) testing of burst carrier signals using digital modulation, and the ability to measure occupied bandwidth percentage.

Time-gated signal analysis allows you to easily measure time-varying signals such as pulsed RF, time-division multiple access, interleaved, and burst-modulated. For millimeter applications that don’t require full microwave coverage, the 8561EC with the Agilent 11970 series harmonic mixers or Agilent 11974 series preselected mixers is a lower-cost solution.
