Keysight-Agilent 8560EC

001 – Second IF Output (310.7 MHz)provided at rear panel connector J10. Not available with option 327.
002 – Built-in 300 kHz-2.9GHz Tracking Generator. Not available with option 005.
005 – Alternate Sweep Output. Not available with options 002 or 327.
007 – Fast Time Domain Sweeps as fast as 50 us in 0 Hz span. Not available with option 327.
008 – Signal Identification. Provides signal ID for unpreselected ext. mixers. Not avail. with opt. 327
042 – Soft Carrying Case, Gray
044 – Soft Carrying Case, Yellow
103 – Frequency reference changed to TCXO. Minimum Res BW decreased from 1 Hz to 10 Hz.
104 – Deletes 85620A Mass Memory Module
1BN – MIL-STD-45662A Calibration (no Data)
1BP – MIL-STD-45662A Calibration (with Data)
327 – Deletes front panel IF Input and rear panel Video Output.
908 – Rackmount Flange kit without Handles
909 – Rackmount Flange Kit with Handles
910 – Extra Manual Set
915 – Service Guide
916 – Extra Quick Reference Guide (English)
B70 – BenchLink Spectrum Analyzer
C91 – 856xEC-series Factory Rackmount configuration (see option 908)
R08 – Signal Identification Retrofit Kit
UK6 – Commercial Calibration Certificate with Test Data
W30 – Extends factory warranty service for 3 years.
W32 – Two additional years calibration service
W34 – 3 year customer return for calibration service
W50 – 5 year customer return for repair service
W52 – 5 year customer return for calibration service
W54 – 5 year customer return for calibration service

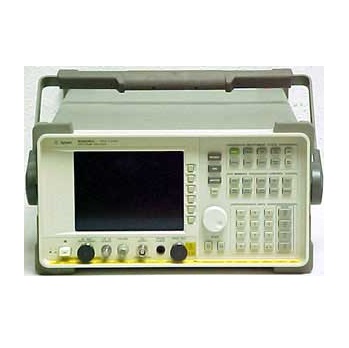

8560EC Portable Spectrum Analyzer, 30 Hz to 2.9 GHz

The Agilent 8560EC portable, color display RF spectrum analyzer offers the measurement capability and performance previously found in larger, more expensive benchtop analyzers. This analyzer combines outstanding phase noise, sensitivity, 1 Hz resolution bandwidths, synthesized tuning and wide dynamic range in a package built to withstand environmental conditions. It offers a complete solution for adjacent-channel power (ACP) testing of burst carrier signals using digital modulation, and the ability to measure occupied bandwidth percentage.

Key Features and Specifications
Color Display
Continuous 30 Hz to 2.9 GHz sweep
Fast digital resolution bandwidths of 1, 3, 10, 30 and 100 Hz
Adjacent channel power, channel power, carrier power, occupied bandwidth percentage and time-gated measurements standard
Precision timebase and 1 Hz counter resolution
MIL-PRF-28800 Class 3 rugged
Measurement personalities for digital radio and phase noise measurements
