The Best Keysight-Agilent 83752B
Keysight-Agilent 83752B

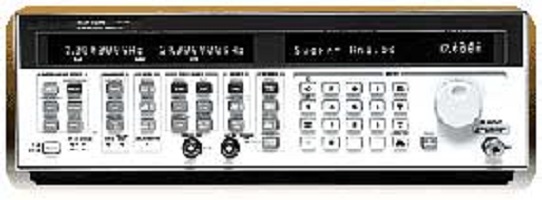

Keysight 83752B High Power Synthesized Sweeper
The Keysight 83752B sweeper brings outstanding synthesized performance for general purpose benchtop, swept test or scalar applications. This sweeper provides superior accuracy and stability while maintaining the speed of an analog source. Fully synthesized CW, stepped and ramp sweep modes are available in broadband and narrowband operation. The synthesis capability is particularly useful for the characterization of narrowband devices, in which the frequency instabilities of open-loop sources become most apparent.
High Power Synthesized Sweeper, 0.01 – 20 GHz
Features and Specifications:
Frequency range: 0.01 – 20.0 GHz
Frequency resolution: 1 Hz Output range: +16 dBm to -10 dBm (standard); +15 dBm to -80 dBm (Option 1E1)
Output level resolution: 0.01 dB
Internal level accuracy: 1.5 dB -45 dBc harmonics <20.0 GHz typical
SSB phase noise: <-50 dBc at max. leveled power
Long term stability is excellent at 5×10-10/day
Output connector: 3.5 mm(f) standard
HP-IB interface
90-132/198-264 VAC; 50-60 Hz operation
Weight: 35 lb
Size: 133 mm (5.25 in)H x 425 mm (16.75 in)W x 483 mm (19.0 in)D
IN STOCK
Description
Keysight-Agilent 83752B
Specifications
Specifications describe warranted instrument performance over the 0 to 55 °C temperature range unless otherwise noted. Specifications apply after the peak function has been performed. Supplemental characteristics
(indicated by italics) are intended to provide information useful in applying the instrument, but are not warranted parameters.
Frequency
Range
83751A/B: 2 GHz to 20 GHz
83752A/B: 10 MHz to 20 GHz
Timebase stability
Standard 10 MHz time base: ±10 ppm
High stability time base (Option IE5):
accuracy = calibration ± aging rate
± temperature effects ± line voltage effects
Aging rate: 5 x 10-10/day, 1 x 10-7/year
With temperature: 1 x 10-10/°C
With line voltage: 5 x 10-10 for 10% change
CW mode
Resolution: 1 Hz
Accuracy: same as time base
Switching time: 70 ms max
Stepped sweep mode
Resolution: settable 1 Hz, display 1 kHz
Accuracy: same as timebase
Minimum step size: same as resolution
Number of points: 2 to 1601
Switching time/point 1
: 7 ms + 8 ms/GHz step
Dwell time/point: 1 ms to 1 s
