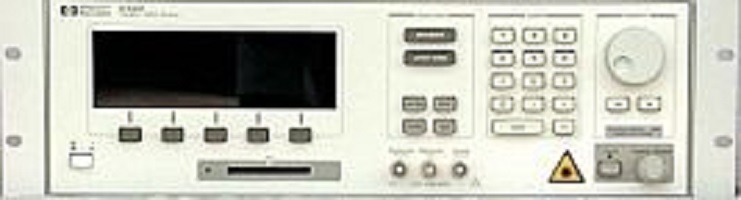

Keysight-Agilent 8168C

Keysight-Agilent 8168C

KEYSIGHT TECHNOLOGIES (AGILENT / HP)
TUNABLE LASER SOURCE
1470 – 1580nm 2,5dBm

Features
• Wavelength range : 1470 nm to 1580 nm
• Absolute wavelength accuracy : < ± 0.1 nm
• Relative wavelength accuracy : ± 0.035 nm (typical: ± 0.02 nm)
• Wavelength resolution : 0.001 nm, 125 MHz at 1550 nm
• Wavelength stability (typical over 1 h at constant temp.) : < ± 100 MHz • Wavelength repeatability : ± 0.035 nm (typical: ± 0.02 nm) • Linewidth (typical)/ Broadened (effective, typ.) : 100 kHz/ 50 to 500 MHz • Sidemode suppression ratio: >40 dB
• Tuning Speed (typical, for a 1 nm/ 10nm/ 100 nm step) : 200 ms/ 300 ms/ 2s
• Maximum output power : +2.5 dBm (1520 to 1570 nm)
• Minimum output power : -10 dBm
