Keithley 236
Keithley 236

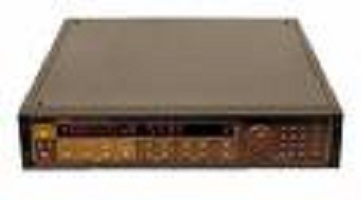

The Keithley 236 Source-Measure Unit (SMU) is a fully programmable instrument, capable of sourcing and measuring voltage or current simultaneously. This system is really four instruments in one; voltage source, voltage measure, current source, and current measure. The unit will source voltage from 100 ?V to 110 V and current from 100 fA to 100 mA. It can also measure voltage from 10 ?V to 110 V and current from 10 fA to 100 mA.
IN STOCK
Description
Keithley 236
The Keithley 236 Source-Measure
Units (SMU) are fully programmable instruments, capable of sourcing and measuring
voltage or current simultaneously. These
systems are really four instruments in one:
voltage source, current source, voltage
measure, and current measure.
Applications
These instruments address a wide variety
of applications, including the characterization of semiconductor devices and the
measurement of leakage currents or insulation resistance. They are particularly useful
as source and measuring instruments in
automated test equipment (ATE).
Wide Dynamic Range
The Model 236 will source voltage from 100µV to 110V, and current from 100fA to 100mA. It can
also measure voltage from 10µV to 110V and current from 10fA to 100mA. The Model 237 offers
the same capabilities with a decade enhancement in voltage source and measure (1100V). In this
higher voltage range, current source and measure is 10mA maximum. The Model 238 offers a
decade enhancement in current source and measure (1A). In this higher current range, voltage source
and measure is 15V maximum.
