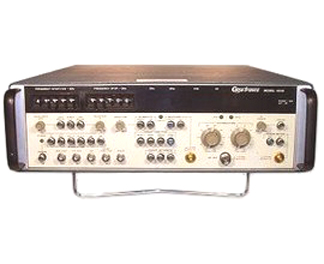

Gigatronics 1018

Signal Generator/Counter

The 1018 Signal Generator/Counter provides several microwave generation and measurement functions which result in making the instrument a versatile microwave test set that can replace a number of instruments in many applications. The unit is basically a 50MHz to 18GHz digital synthesized signal generator that provides precise, highly stable and calibrated signal output. The synthesized output has versatile pulse modulation, amplitude modulation and digital sweep with selectable limits in precise increments of 1MHz, 10MHz or 100MHz. A sweep output is provided to drive XY plotters, oscopes or other external indicating devices.

Description

Options:
Option 02 = No Low Band, 50 MHz to 2 GHz
Option 03 = 1kHz Resolution
Option 04 = RS-232 Interface in lieu of IEEE-488
Option 06 = High Stability Time Base, 1X10E-09/day
Option 07 = Scan Modulation in lieu of External AM
Option 12 = Operation to 12 Gz only, No 12-18 GHz band
Option 13 = MATE (CIIL) Interface – All signal generator parameters
