Chroma 66201

Chroma 66201

Contact Us to Request a Quote

Chroma’s new series 66200 Digital Power Meter is designed for single-phase measurements of AC power signals and related parameters common to most electronic products. Instead of traditional analog measurement circuits the 66200 Digital Power Meter uses state-of-the-art DSP digitizing technology. The internal 16 bits analog/digital converters with sampling rates of up to 200KHz provide both high speed and high accuracy measurements which is unprecedented within the industry for this class of power meters current on the market.

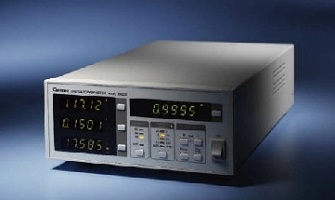

The instruments include a four part display with 7-segment LED front panel readouts. Users can easily select desired parameters and readouts at a touch of a button. Instruments also include optional remote control using USB or GPIB interfaces via rear panel connections. The 66200 Digital Power Meter is packaged in a 2U high, half rack enclosure suitable for bench top or system integration.

The Model 66201 Digital Power Meter includes simple measurement functions designed for low power applications (maximum current 2A). Examples of these devices are AC adapters, battery chargers, LCD monitors, and similar devices. Included measurement data is:

Voltage: Vrms, Vpeak+, Vpeak- Current: Irms, Ipeak+, Ipeak- Power: Watts, Power Factor, Apparent Power VA, Reactive Power VAR Current Crest Factor Frequency.

The Model 66202 Digital Power Meter includes a 2-shunt design to provide highly accurate readings for both low and high current measurements. In addition to the parameters measured by Model 66201, the 66202 includes Inrush current, Total Harmonic Distortion of V/I, and Energy measurements. With these practical functions, The Model 66202 is suitable for the most demanding of R&D and quality control departments.

10mA minimum current range & 1mW
Accumulated energy methods for unstable power measurements
Dual current shunt design provides high accuracy over a wide current range
Interface options: USB or GPIB

Description

Chroma 66201

Chroma’s new series 66200 Digital Power
Meter is designed for single-phase measurements of AC power signals and related parameters common to most electronic products.
Instead of traditional analog measurement
circuits the 66200 uses state-of-the-art DSP
digitizing technology. The internal 16 bits analog/digital converters with sampling rates of up
to 240KHz provide both high speed and high
accuracy measurements which is unprecedented within the industry for this class of power
meters current on the market.
The instruments include a four part display with
7-segment LED front panel readouts. Users
can easily select desired parameters and readouts at a touch of a button. Instruments also
include optional remote control using USB or
GPIB interfaces via rear panel connections.
The 66200 is packaged in a 2U high, half rack
enclosure suitable for benchtop or system integration.
The Model 66201 includes simple measurement functions designed for low power applications (maximum current 2A). Examples of these
devices are AC adapters, battery chargers,
LCD monitors, and similar devices. Included
measurement data is :
1. Voltage : Vrms, Vpeak+, Vpeak2. Current : Irms, Ipeak+, Ipeak3. Power : Watts, Power Factor,
Apparent Power VA,
Reactive Power VAR
4. Current Crest Factor & Frequency
The Model Chroma 66201 includes a 2-shunt design to
provide highly accurate readings for both low
and high current measurements. In addition to
the parameters measured by Model Chroma 66201, the
Chroma 66201 includes Inrush current, Total Harmonic
Distortion of V/I, and Energy measurements.
With these practical functions, The Model
Chroma 66201 is suitable for the most demanding of
R&D and quality control departments.
