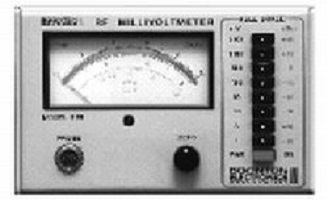

Boonton 92B
Boonton 92B
Quality, ease-of-use, and accuracy have all contributed to making the 92B RF Millivoltmeter a standard in the industry. Turn it on, set the range, connect it to the signal, and read the appropriate scale?it’s that easy! Input ranges are 100 ?V to 3 V and -60 to +23 dBm full scale. Measurements frequency range can be made from 10kHz to 1.2GHz with a basic accuracy of ?(1% of reading +1% full scale). True RMS ability for input levels up to 30 mV, approaching p-p above this level. Remote programmability.
IN STOCK
Description
Boonton 92B
Additional Features:
True RMS ability for input levels up to 30 mV, approaching p-p above this level
Remote programmability
Input ranges:
100 µV to 3 V
-60 to +23 dBm full scale measurements
Frequency range:
10 kHz to 1.2 GHz with a basic accuracy of ±(1% of reading +1% full scale)
The 92B Boonton Meter has 100uV to 3V in 8 Ranges. As well as 10kHz to 1.2 GHz with a DC output for meter or recorder. The Basic accuracy 1% FS + 1% of Reading.
