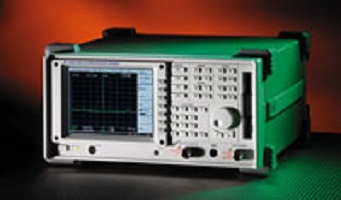

Aeroflex IFR 2399B

Aeroflex IFR 2399B

9 kHz to 3 GHz fully synthesized frequency range. Wide Signal Measurement Range
The 50 ohm input on the 2399B can accept signals between +30 dBm
and -110 dBm while providing protection to ±50 Vdc.
Semi-Automated Measurements
The MMI on the 2399B has been designed to simplify many of the measurements required for the evaluation of today’s sophisticated communications systems. These include Adjacent Channel Power, X dB Down, Occupied Bandwidth, Channel Power and Harmonic Distortion.

Auto-Tune Function
Use of this function allows an unknown signal to be quickly captured and displayed on the screen. The 2399B will search its complete frequency range for the highest level signal, capture it and display it in the center of the screen with both the span and resolution bandwidths being automatically set to the optimal state for best viewing.

Spectral Purity
The phase noise on the 2399B is specified at -90 dBc at 10 kHz offset which allows its use for evaluating the spectral purity and noise performance of systems and sub-systems.

• Lightweight, portable and rugged construction at 9.4 kg

• Excellent TFT color display

• Comprehensive marker facility

• Wide input signal range +30 dBm to -110 dBm

• Optional full range tracking generator

• Semi-automated measurements

• Optional internal pre-amplifier

• Floppy disk drive

• Extremely user friendly MMI reduces risk of operator error

• Auto-Tune facility

• GPIB as standard

• AM/FM demodulation

A “Value for Money” Product The 2399B is the latest in the range of spectrum analyzers from Aeroflex providing exceptional performance at an exceptional price.
Frequency Accuracy
The local oscillator system in the 2399B is fully synthesized thus providing accurate frequency measurements with 1 Hz resolution
