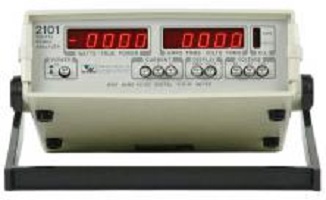

Valhalla Scientific 2101
Valhalla Scientific 2101
The 2101 digital power analyzer provides 4.5 digit V-A-W measurements. It is an accurate, reliable power measurement device designed to aid engineering, production test, and quality assurance departments in determination of product power consumption from DC and AC power sources. The instrument features dual independent digital displays. The left display provides a continuous indication of true power in watts. The left right display is switch-selectable between amperes (true RMS) or volts (true RMS).
The 2101 provides a fast and convenient method of determining product efficiency, power factor, and true RMS current draw. Phase angle relationships may be calculated through manipulation of the displayed quantities.
The 2100 and 2101 are nearly identical in function except for their voltage input capacity. The 2100 has voltage ranges of 150, 300, and 600 volts.
The 2101 has voltage ranges of 30, 150, 300 volts. The 2101 provides greater watts resolution when using lower voltages, at the expense of a reduced maximum voltage capacity.
IN STOCK
Description
Valhalla Scientific 2101
Features:
4.5 digit resolution
Frequency response: dc to 50 kHz
AC True RMS/DC Voltage and AC True RMS/DC Current
Voltage ranges: 30 V, 150 V, 300 V
Maximum input: 600 Vdc or rms Vac, 1500 V peak
Accuracy: (Voltage and Current)
dc & 40 Hz to 5 kHz: ±0.1% of reading ±6 digits
5 kHz to 15 kHz: ±0.5% of reading ±6 digits
15 kHz to 20 kHz: ±0.75% of reading ±6 digits useable to 50 kHz
Watts
Accuracy: 25°C ±5°C, 1 year
dc & 40 Hz to 5 kHz: ±0.25% of reading ±6 digits
5 kHz to 10 kHz: ±0.5% of reading ±0.5% of range
10 kHz to 20 kHz: ±1% of reading ±1% of range (2A range only)
20 kHz to 50 kHz: additional ±1% per 10 kHz above 20 kHz
