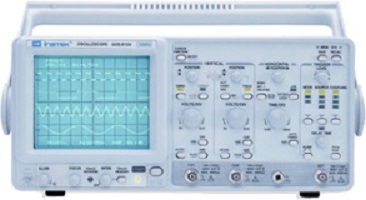

Instek GOS-6103C
Instek GOS-6103C
The vertical deflection system has two input channels. Each channel has 11 basic deflection factors from 2mV to 5V per division. The horizontal deflection system provides single, dual or delayed sweeps from 0.5s to 50ns per division (delayed sweep, 50ms to 50ns per division). The trigger system provides stable triggering over the full bandwidth of the vertical deflection system.
IN STOCK
Description
Instek GOS-6103C
The vertical deflection system has two input channels. Each channel has 11 basic deflection factors from 2mV to 5V per division. The horizontal deflection system provides single, dual or delayed sweeps from 0.5s to 50ns per division (delayed sweep, 50ms to 50ns per division). The trigger system provides stable triggering over the full bandwidth of the vertical deflection system.
Features:
100MHz, Dual Channel, Delayed Sweep
Built-in 6 Digit Universal Counter (GOS-6103C)
Cursor Readout with 7 Measurements
10 Sets Memory for Front Panel Setting Save & Recall (GOS-6103/GOS-6103C)
Panel Setup Lock of Digital-Control Functions
Time Base Auto-range (GOS-6103/GOS-6103C)
Buzzer Alarm
LED Indicators
TV Synchronization
Trigger Signal Output
Z-axis Modulation Input
SMD Technology, High Stability and Reliability
